Commercial Small Package Candy Wrapping Machine

Model TZ-350S TZ-350X
Film width(Maximum) 350mm 350mm
Bag length 65-190mm or 120-280mm 90-6000mm
Bag width 50-160mm 30-160mm
Product height(Maximum) 60mm 70mm
Film roll diameter(Maximum) 320mm 320mm
Packaging rate 25-120bags/min 25-120bags/min
Power 220V 50/60Hz 2.6KW 220V 50/60Hz 2.6KW
candy wrapping machine

Taizy candy wrapping machine is professional for packaging hard candy, soft candy, chocolate candy, etc. Its capacity can achieve 30-300bags/h with the bag width range from 50 to 160mm and bag length range from 90 to 220mm or 150 to 330mm.

This flow pack machine normally provides back-seal packaging style with a maximum height of no more than 60mm. Our equipment has been exported to many countries: Türkiye, Nigeria, Mexico, Poland, the Philippines, etc. It is very suitable for medium-sized food factories to pack candy food.

candy packaging machine

Advantages of the individual candy wrapper machine

  • Taizy candy wrapping machine automatically detects the product’s size and sets the bag length during operation, ensuring consistent packaging accuracy for candies with different shapes, which saves time and effort without unnecessary manual adjustments.
  • Equipped with triple servo control and a simplified mechanical structure, our candy packaging machine provides lower maintenance costs, less wear, and a longer service life, making it ideal for continuous candy production lines.
  • The machine uses a servo motor to control the packaging speed, offering infinitely variable speeds. This system allows it to easily synchronize with the candy production process and maintain consistent packaging output.
  • Our machine has independent sealing temperature control, allowing the machine to adapt to a variety of packaging films (such as OPP, CPP, or composite films), which makes the seal strong, secure, and aesthetically pleasing for sale.

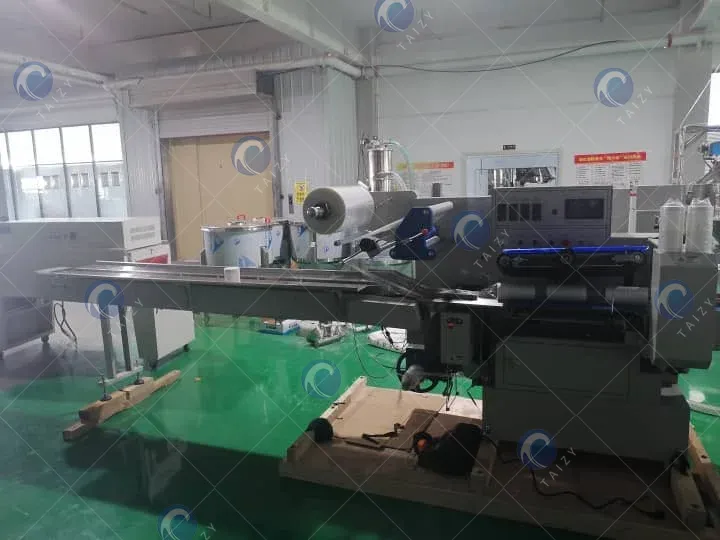

Automatic candy wrapping machine
Automatic Candy Wrapping Machine

Parameters of candy bar wrapping machine

These two types of machines are different in their packaging films. The type of TZ-350S ‘s film is above the products, which is suitable for candy that is difficult to change shape. The type of TZ-350X is better to packaging fragile or brittle candy.

Note: Be careful to make sure the right bag length and width when you choose your machine. This is the key feature for selecting suitable equipment.

ModelTZ-350STZ-350X
Film width(Maximum)350mm350mm
Bag length65-190mm or 120-280mm90-6000mm
Bag width50-160mm30-160mm
Product height(Maximum)60mm70mm
Film roll diameter(Maximum)320mm320mm
Packaging rate25-120bags/min30-120bags/min
Packaging materialsOPP,OPP/CPP,KOP/CPP,ALU-FILMOPP,OPP/CPP,KOP/CPP,ALU-FILM
Power220V 50/60Hz 2.6KW220V 50/60Hz 2.6KW
Machine size4020mm*820mm*1450mm3836mm*890mm*1079mm
Machine weight300Kg350Kg
parameters of candy wrapping machine

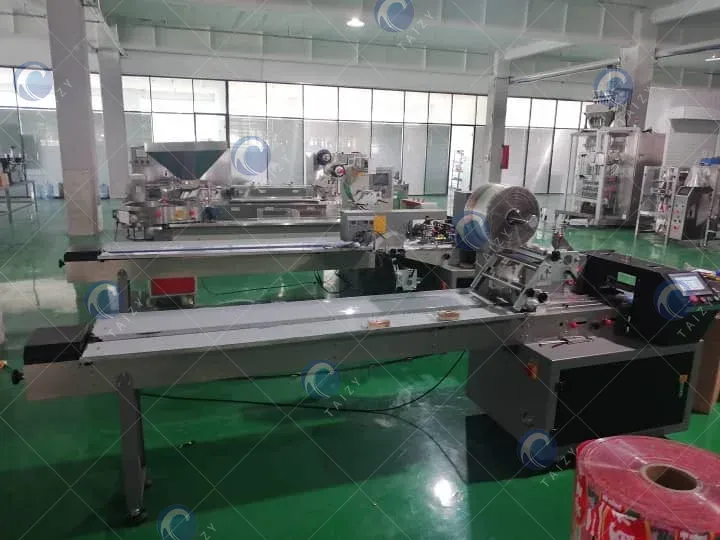

High speed candy wrapping machine
High Speed Candy Wrapping Machine

Structure of Taizy candy wrapping machine

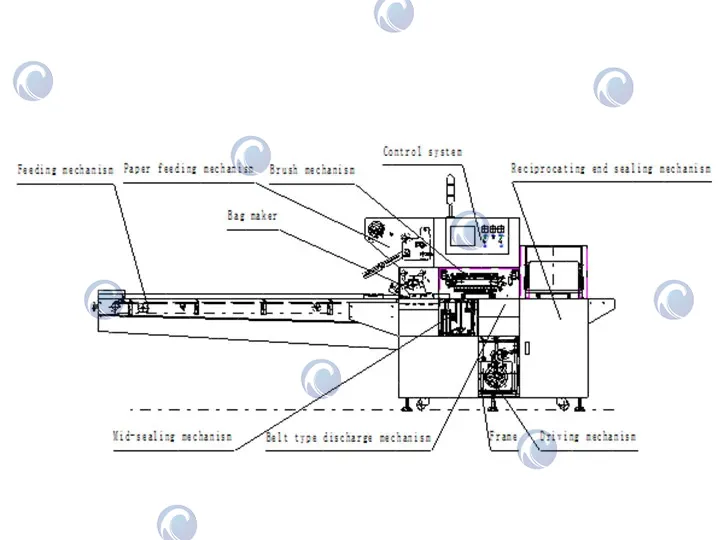

The main system of this candy wrapping machine consists of a feeding system(includes the materials feeding part and the paper feeding part), a bag maker system, a control system, a driving system, and a sealing system. Here is a complete machine-side cutting diagram.

Structure of candy wrap packaging machine
Structure Of Candy Wrap Packaging Machine

Applications of automatic candy wrapping machine

The automatic candy wrapping machine is not only a packaging device but also a solution for efficiency, hygiene, and brand presentation. So most businesses prefer to choose it as their packaging solution.

Some of our customers are candy factories and candy manufacturers who use this packaging machine for large-scale production of candies, toffees, gummies, and chocolates to ensure packaging quality, reduce reliance on manual labor for lower overall production costs.

Some export-oriented food companies also prefer us. Our packaging machines not only meet international hygiene and shelf life standards but also offer aesthetically pleasing packaging and seals, making them suitable for retail export markets worldwide.

Other candy packaging solutions

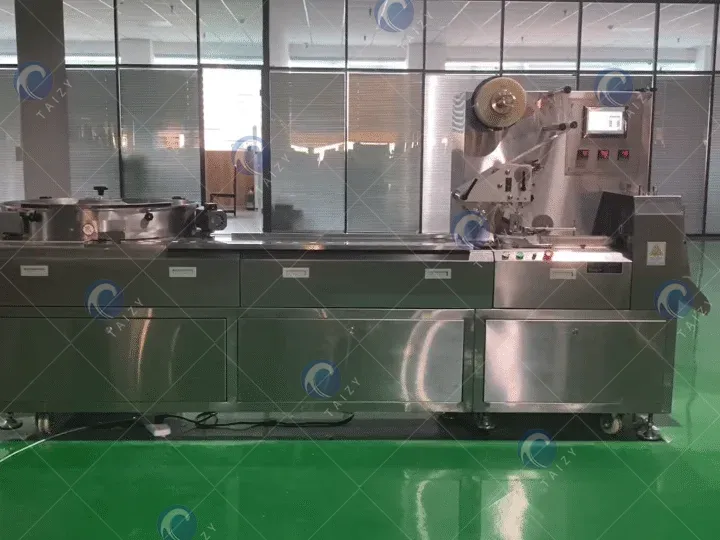

Lollipop candy wrap machine

This is specially designed for lollipop packaging. But if you want a more effective machine and pack regularly shaped objects, this type of candy wrap machine would be a good choice. Its production capacity can achieve 200-300bags/min.

ModelTZ-900
Packaging rate200-300bags/min
Additional systemVibrating hopper, material handling turntable
ApplicationsLollipops, chocolates, and preserved fruits
Power 220V 50Hz 4.5KW
Machine size3450mm*1300mm*1600mm
Machine weight850Kg
specification of lollipop candy packaging machine

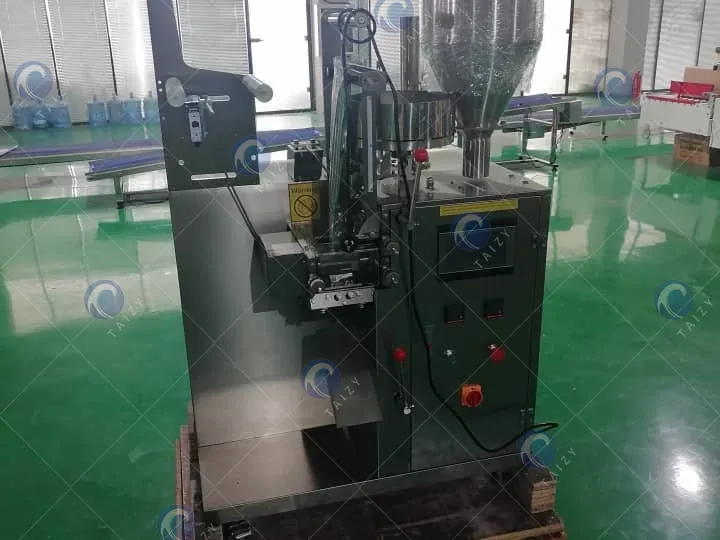

Candy batch packaging machine

For mixed candies or snacks that are not easy to stick together, like marshmallows, we also provide granule packaging machines to solve this problem.

ModelTZ-320
Packaging rate50-110bags/min
Maximum film width300mm
Bag sizeL:50-180mm
W:40-140mm
Power220V or 380V 1.2KW
Film roll diameter0.03-0.10mm
Machine size650mm*1600mm*1600
Machine weight300kg
Measuring rangeManual feeding
Film roll diameter≤Φ400mm
parameters of candy batch packaging machine

FAQ of candy wrapping machine

Is it easy to change formats/sizes (bag length, bag width, packaging thickness, etc.)?

There is no need for manual setting within the bag-making range. The machine will package items according to their length. If it exceeds the range, it is recommended to purchase a machine with a larger range.

What is the power consumption?

It’s normally 220V, but if you have a different requirement, our factory can make a customization.

Can the machine provide sample testing?

Before completing your order, we will conduct a trial machine test and pack items similar to your samples for testing to determine if your machine operates smoothly or not.

How to solve the synchronization problem before and after the production line?

Our machine uses a servo motor to control the packaging speed, offering infinitely variable speeds. So it’s easy to link with the production line.

If you have any other questions, please contact us to gain the details.

Successful case of peanut chikki packing machine

One of our clients owns a peanut candy processing factory in Mexico and is looking for a perfect packaging machine for his products. Peanut candy has a certain viscosity and cannot be packed using conventional vertical granule packaging machines.

Then he is to provide good solutions. Our professional service staff introduces this machine, which can perfectly solve his packaging problems. The whole process is fluent, and after he receives this machine and starts putting it into his production line, the output improves more than double.

“It’s really surprised me that it can link to my production line so quickly. ” He is so satisfied with the machine’s effect.”I am researching my other peanut products, maybe we will have another cooperation!”

Taizy is a professional packaging machine manufacturer. If you have any problems with packaging, don’t hesitate to contact us. We will provide you with a perfect solution.
