The 8 station rotary pouch packing machine is a highly efficient automated packaging device. This machine combines an automatic rotary packaging system with two different measurement methods, making it suitable for both granular products such as dates, melon seeds, and chocolate, and powdered products such as milk powder and condiments. It is widely used in industries such as food, medicine and chemicals.
For granular products, the pouch dimensions are 16 cm x 21 cm, with a net weight of 250-1000g per bag and an operating speed of 20-35 bags per minute. For powdered products, the net weight ranges from 250-1000g per bag, with an accuracy of ±1% and a packaging speed of 20–35 bags per minute.
What Is an 8 Station Rotary Pouch Packing Machine?
The 8 station rotary pouch packaging machine is an automatic premade pouch packaging solution designed for continuous bag feeding, filling, and sealing. The HS8-250-S model works with premade pouches and can be equipped with a 10-head computerized combination weigher for granules or an auger filler for powder products.
The same pouch packing machine can therefore be used for different products by selecting the appropriate metering system. For granule products, the combination weigher provides the required weighing process. For powder products, the auger filler is used for powder filling.
This configuration is especially useful for businesses that need to pack different types of food products without purchasing separate complete packaging machines.
8 Station Rotary Pouch Packing Machine Features
- Wide pouch use: Suitable for many pre-made pouches, including flat and stand-up pouches, with or without zippers.
- Easy to operate: Use a PLC and color touch screen. Any machine fault will be shown on the screen.
- Quick pouch change: It takes only about 10 minutes to change to a different pouch size.
- Adjustable speed: The packing speed can be easily adjusted by frequency control.
- No pouch, no filling or sealing: If there is no pouch or the pouch is not opened correctly, the machine will not fill or seal and will give an alarm.
- Low air pressure protection: The automatic weighing packing machine will alarm and stop when the air pressure is too low.
- Clean and safe: Product-contact parts are made of SUS304 stainless steel.
- No need for oil: Engineering plastic bearings do not need oil, helping keep the product clean.
- Clean vacuum system: The oil-free vacuum pump helps keep the production area clean.
Two Working Configurations for Different Products
| Item | Granule configuration | Powder configuration |
| Feeding system | Vibrating feeder + Z-elevator | Screw conveyor |
| Measuring system | 10-head combination weigher | Auger filler |
| Packing system | HS8-250-S rotary pouch packing machine | HS8-250-S rotary pouch packing machine |
| Main products | Nuts, snacks, grains, chocolate beans, etc. | Flour, oat powder, quinoa powder, and other powders |
Main Technical Specifications of the Premade Pouch Packing Machine
Rotary pouch packing machine
| Model | HS8-250-S |
| Packing Speed(Bags/Min) | 20-40 |
| Bag Size(mm) | W: 130-250mm L: 150-400mm |
| Bag Types | All kinds of compound bags, such as flat bag, 3-side sealing bag, 4-side sealing bag, zipper bag, standup bag etc. |
| Filling Range | 10-2500g |
| Total Power | 6.0KW |
| Overall Dimensions(mm) | 1800*1700*1500mm |

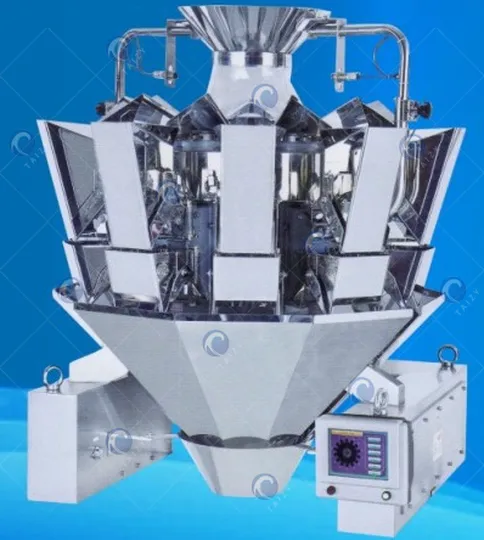

10 heads combination weigher
| Model | HS-A10-2.5L |
| Weighing Range | 10-1000g |
| Weighing Accuracy | ±0.5-2.0g |
| Max. Weighing Speed | 60Bags/min |
| Hopper capacity | 2.5L |
| Panel | 7 Touch Panel |
| Driving System | Step Motor |
| Voltage | 1 Phase 220V 50/60HZ |

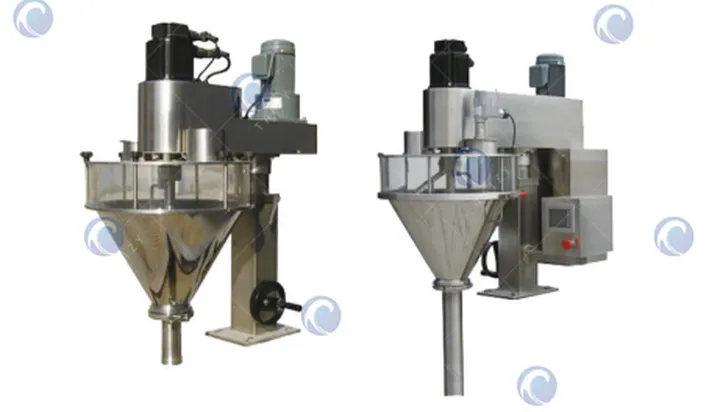

Auger filler
| Model | HS-50L |
| Filling Weight | 50-1000g(needs change screw accessories) |
| Filling Accuracy | 100g≤, ±2%; 100-500g,≤±1% |
| Filling Speed | 10-50 bags/min |
| Power | 3Phases 380V 50/60HZ |
| Total Power | 0.93KW |
| Overall Dimensions | 800*790*1900mm |
| Weight | 130kg |
What Products Can the 8 Station Rotary Pouch Packing Machine Package?
The packing line is mainly designed for grains, solids, snacks, dry fruits, and other suitable products. The documented applications include:
- Red dates
- Candy
- Nuts
- Raisins
- Peanuts
- Melon seeds
- Chocolate beans
- Coffee
- Small granule products
- Flour
- Amaranth powder
- Oat powder
- Quinoa powder
FAQ About the 8 Station Rotary Pouch Packing Machine
Can it pack zipper stand-up pouches?
Yes. The machine supports zipper bags and stand-up bags. A zipper opening device and bottom opening device can be added according to the pouch structure.
Can it pack both powder and granule products?
Yes. The documented configuration uses the combination weigher for granule products and the auger filler for powder products. The same rotary pouch packing machine can be used as the common filling and sealing platform.
Is the machine easy to clean?
The auger filler is designed with an openable hopper, and the product-contact parts are made of 304 stainless steel and plastic. This helps simplify cleaning and maintenance.
Does the machine come with a warranty?
The supplied configuration specifies a one-year warranty.
8 Station Rotary Pouch Packing Machine Price
The price of a rotary premade pouch packing machine varies according to the product being packed and the selected configuration. Different weighing systems, feeding methods, pouch sizes, and optional devices can affect the final machine cost.
For example, the machine can be configured with a 10-head combination weigher and Z-type conveyor for granule products, or an auger filler and screw conveyor for powder products. Optional devices such as zipper opening, stand-up pouch opening, and dust-cleaning systems can also be added according to specific packaging requirements.
Instead of choosing a standard package, customers can get a more suitable solution based on their product type, filling weight, pouch size, production capacity, and packaging requirements.
Contact us for a customized quotation and recommended configuration for your products.
